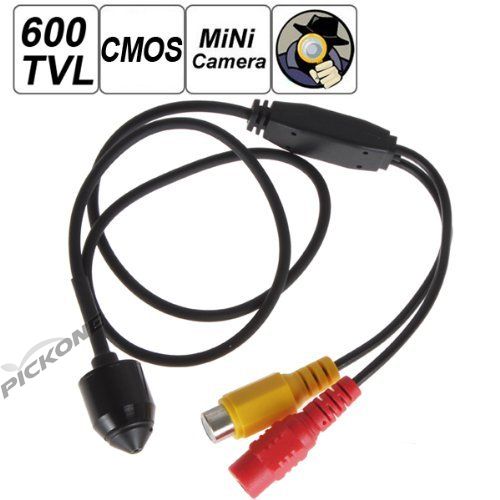

3.7mm Lens 600TVL 1/3 Inch HC Sensor Spy Surveillance Digital CMOS Hidden Covert Mini Camera with 1280 x 960 Resolution and 200 Mega Pixel Smallest Cone Pinhole Spy Video Camera Support Video Output for Home Surveillance TV Standard
Product Description and Information:
Comes with super mini size design, you can install the camera in a quite narrow place or you cloth pocket.Adopts the 1/3" CMOS image sensor, 200 mega pixel, have excellent image and performance.
DSP technique, high sensitive, steady and high clear image quality security system products.
Miniature covert shape design, easy to hide, supports video output.
Widely used for ATM, jewelry shop, finance room and many short distance important indoor conditions.
Brand: BW
Model: XL-R1521CP4
Camera Lens: 3.7mm
Image Sensor: 1/3 Inch CMOS
Resolution: 1280 x 960
Pixel: 200 Mega pixel
Horizontal Resolution: 600TVL
Minimum Illumination: 0.5LUX
S/N Ratio: >48dB
Gama Characteristic: 0.45
Backlight Compensation: +0.5
Image Color: Color / B & W
TV Format: NTSC
Video Output: 1Vp - p 75 Ohm
Frame Speed:
- 60f/s NTSC
White Balance: Auto
Synchronization System: Inter-sync
Supports Audio Output: No
Input Power: DC 12V (with step-down AV cable)
Operating Temperature: - 10 ~ + 50 Centigrade
Color: Black
Camera Size: 15 x 15 x 18mm
Package Dimensions(L x W x H): 68 x 48 x 45mm
Overall Length: 60cm
Product Weight: 25g
Operational Guidance:
1. Connect with power adapter and video output connector.
2. Connect the yellow AV video output with the monitor.
3. Connect with the DVR or video card if you want to record the video.
Package Including:
1 x 1/3 Inch 600TVL HD Spy Hidden Digital CMOS Camera
1 x User Manual
